MMPS - Modular system for machine operating monitoring

MMPS is a modular, diagnostic, measuring and control system permitting

- to measure all standard physical quantities important for the specification of machine status including rapid processes analysis (FTT vibration analysis etc.)
- to create the distributed measuring systems (switchboards) and networks
- to evaluate machines status and transmit this information by communication buses and networks (also INTERNET and GSM)
- to stop automatically the monitored devices in emergency conditions
- to avoid the unexpected machine damages and emergencies by the permanent monitoring of machine status
- to archive the operation and failure values

MMPS system conception
The modular MMPS system consists of one or more MMPS sets mutually connected by the communication bus and supply wires of low power voltage. Some sets have the supply module usually supplying the whole MMPS system from the permanent energy source (mains 230V/50Hz, 24V DC). According to the space separation of individual sets can be also used modules for the communication bus separation and reinforcement.

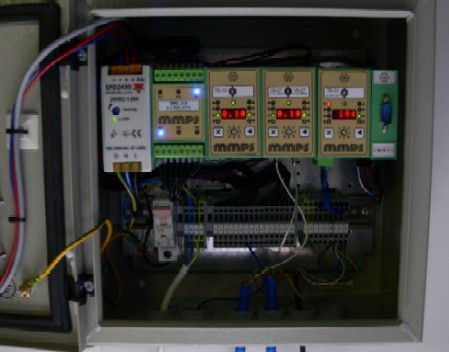

MMPS set
The MMPS set consists of the MMPS modules. All modules in the set are connected by the CAN standard communication bus. This modules set is connected by the flat cable, finished by the bus module. In one set can be placed up to 16 MMPS modules and max. number of modules in MMPS system is 255. There must be fulfilled both above mentioned conditions for the sets number (teoretically 1-255 sets).
