Accelerometers for the industrial application

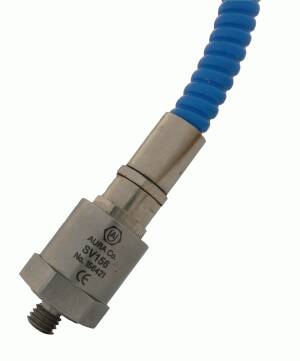

Accelerometers for using in industrial applications are made in versions SV 155, SV 156, SV 164 and SV 166. Accelerometers are made from the anti-corrosive material and have the sealing IP 65. They are determined for the measurement of vibrations in the range from 0,1 Hz to 10 kHz and in temperature range from -40 to 260 °C (surface temperature). This sensor is characterized by the robust construction, low temperature amplitude and magnetic field sensitivity. Sensor type SV 155 is produced with a galvanic separation from the measured object. The output low-noise cable SK 132 is detachable and is covered by a flexible seal tubing diameter of 10 mm equipped with bushings and grommets dimension PG 7.

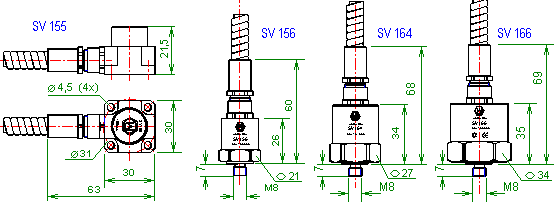

SV type sensors
